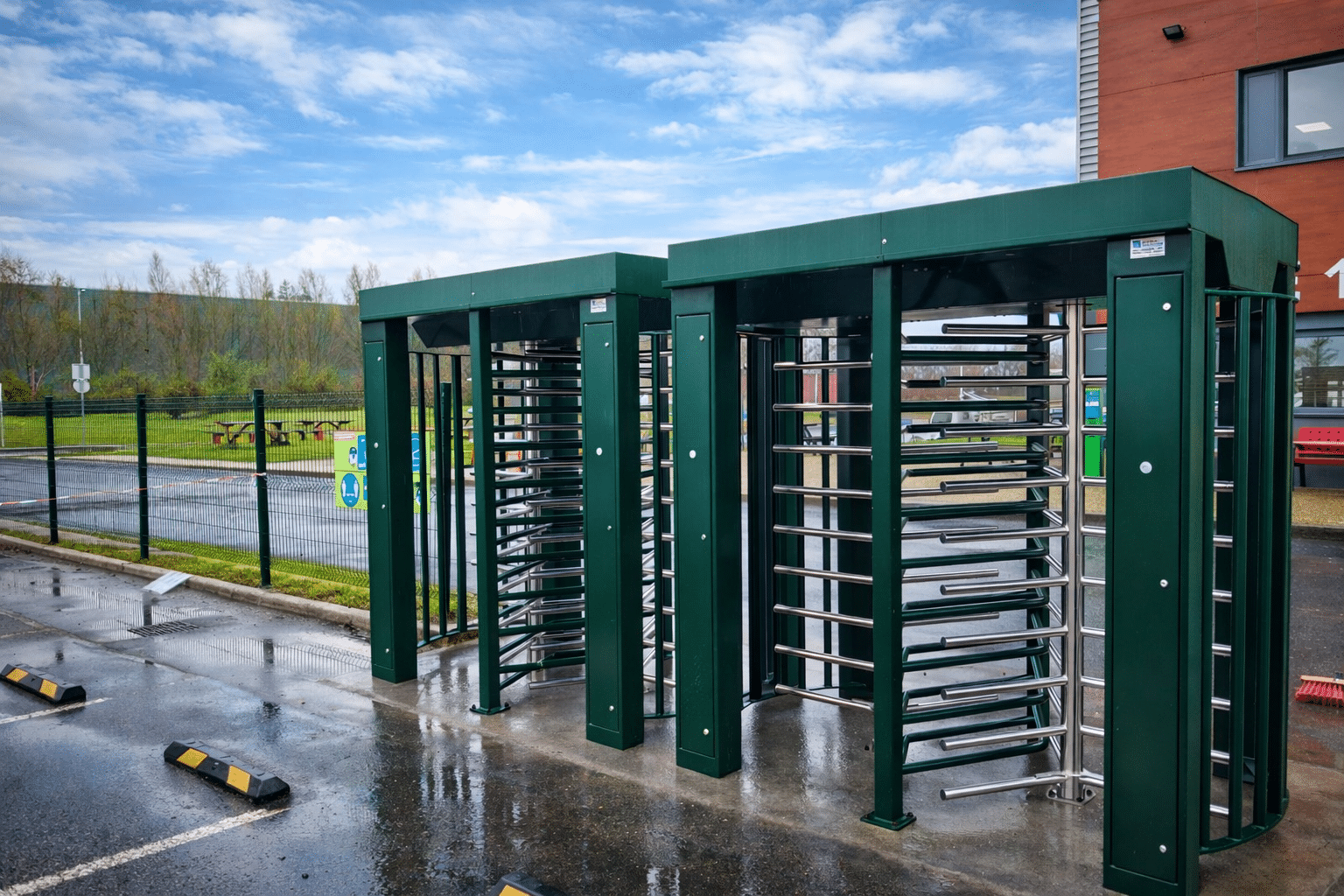

LBA T20 - Bidirectional pedestrian turnstile with two-way traffic

LBA T20 TURNSTILE

Bidirectional pedestrian turnstile with two-way traffic

Secures pedestrian access and facilitates individual entry

Double-way version of LBAT10, 2 drums Ø40 mm. Robust structure, intensive operation, customisable equipment. LED indicators, One-C control, anti-climb roof available as an option. Ideal for public-access buildings, industrial areas or two-way access.

LBA T20 TURNSTILE

Request a quote

Product description

Product data sheet

Intensive operation

Up to 20 passages per minute x2

Wide range of possible uses

Used as an entrance, exit, or entrance/exit

Access control

For integration of access control components into the electronic board on the front

Delivered assembled and wired

With optional drilling template

Intensive operation

Up to 20 passages per minute x2

Wide range of possible uses

Used as an entrance, exit, or entrance/exit

Access control

For integration of access control components into the electronic board on the front

Delivered assembled and wired

With optional drilling template

MAIN CHARACTERISTICS

Standard characteristics:
• Continuous and intensive operation: Up to 20 passages per minute x2
• Power supply: 230v single-phase
• Door with three locks: For integration of access control components
• Passage indicator: Smart red/green passage indicator light on either side, controlled by the access control system
• Roof: Aluminium with a rainwater drainage system
• Steel sheet: Galvanised steel, polyester paint, RAL 9010
• Rotor: Direct connection requiring no fasteners
• Rotor sensor: For precise identification of the position out of 360°
• Lighting: Integrated LEDs on either side
• ONE-C control board including: Power supply, PLC, frequency converter, SD card, RJ45 (Modbus) and torque limiter (in case of motorised turnstile)
• PLC with communication via IP
Optional features:
Customisation:
• Polyester paint with choice of special colour (RAL to be defined)
• Twilight switch
Audible & visual signals:
• Smart LED pictograms for traffic direction
Security:
• Sealing template
• Two-way locking or locked in one way and free the other way
• PLC with communication via IP
• Anti-climb roof
• Lockout door
• Firefighter key release
• Passage reducer
• Stainless steel rotor
• Comfort sleeves
• Heel protector

discover onlylba options

Customise your barriers for your applications thanks to the wide range of LBA options: security and visibility, specific operation (un-hinging, automatic opening system), anti-vandalism, along with accessories and tip supports.

VIEW THE AVAILABLE OPTIONS
