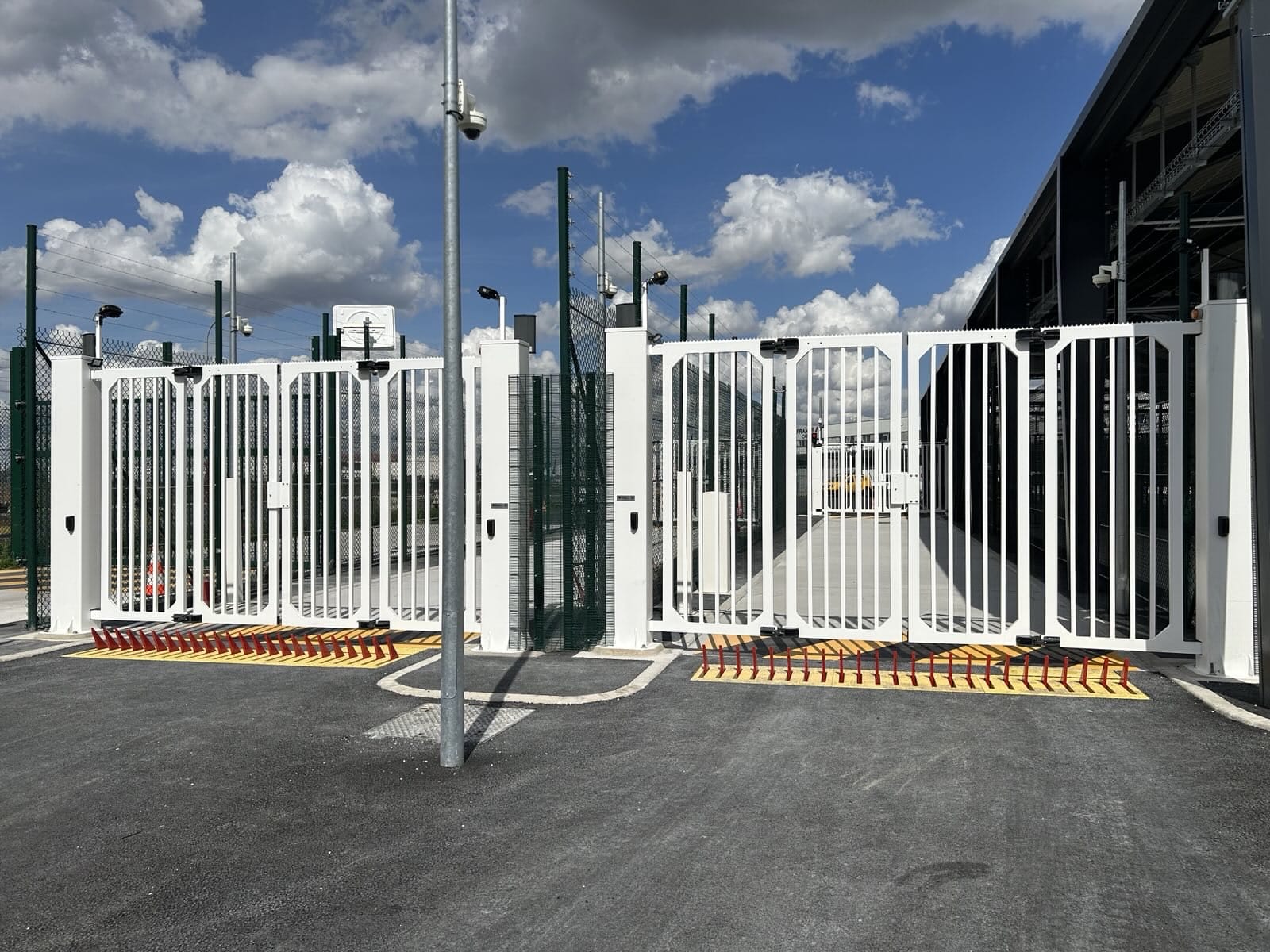

LBAi W-Gate Double
High-speed double gate with artificial intelligence
Gate with 5 to 10 metre clearance
The LBAi W-GATE offers high-speed opening for widths of 5 to 10 metres. Its drive system integrated in the posts guarantees up to 5,000 cycles per day, without compromising safety. It can incorporate LBAi Detect artificial intelligence for advanced passage control. Ideal for industrial or sensitive sites looking for performance, robustness and smart automation.
LBAi W-Gate Double
MAIN CHARACTERISTICS
Standard characteristics:
• Speed: High-speed opening
• Continuous and intensive operation: 5,000 cycles/day
• Clearance width: 5 to 10 m
• Geared motor: Drive system and electronics integrated into the post
• Opening angle: 90° (option: 115°)
• Post: Technical post made of cataphoresis treated steel + paint
• Serrations: Defensive anti-climbing serrations
• Leaves: (frames and bars) in painted aluminium, polyester paint
• ONE-C control board including: Power supply, PLC, frequency converter, SD card, RJ45 (Modbus) and torque limiter
• LBAi Detect intelligent security system: image analysis using artificial intelligence (optional)
• Light signals: Flashing lights & area lighting
Optional features:
Customisation
• Choice of RAL colours
• Customisable leaves
• LBAi Detect: Customisable detection area depending on the site configuration and ensuring complete user safety
• Stylish aluminium sheet with LBA Design pattern
• Possible configurations: 2x2 leaves
Audible & visual signals
• LED strips
Security
• Infrared barrier
• 2 infrared barrier support posts
• 4 safety edges for mounting on the leaves
• Defensive anti-climbing serration
• LBA i Detect camera (up to 2 detection areas)
• Magnetic lock
discover onlylba options
Customise your barriers for your applications thanks to the wide range of LBA options: security and visibility, specific operation (un-hinging, automatic opening system), anti-vandalism, along with accessories and tip supports.
TECHNICAL SPECIFICATIONS
- Power supply
230 V
- Consumption
100 W three-phase motor in motion
- Geared motor
Motor 0.09 kW brake x2
- Emergency operation
Brake release in posts
- Concrete foundation dimensions (LxDxH)
600 x 600 x 800 mm
- Clearance width
5 to 10 m
- Operating temperature
-30° to +55° C
- IP rating
54
