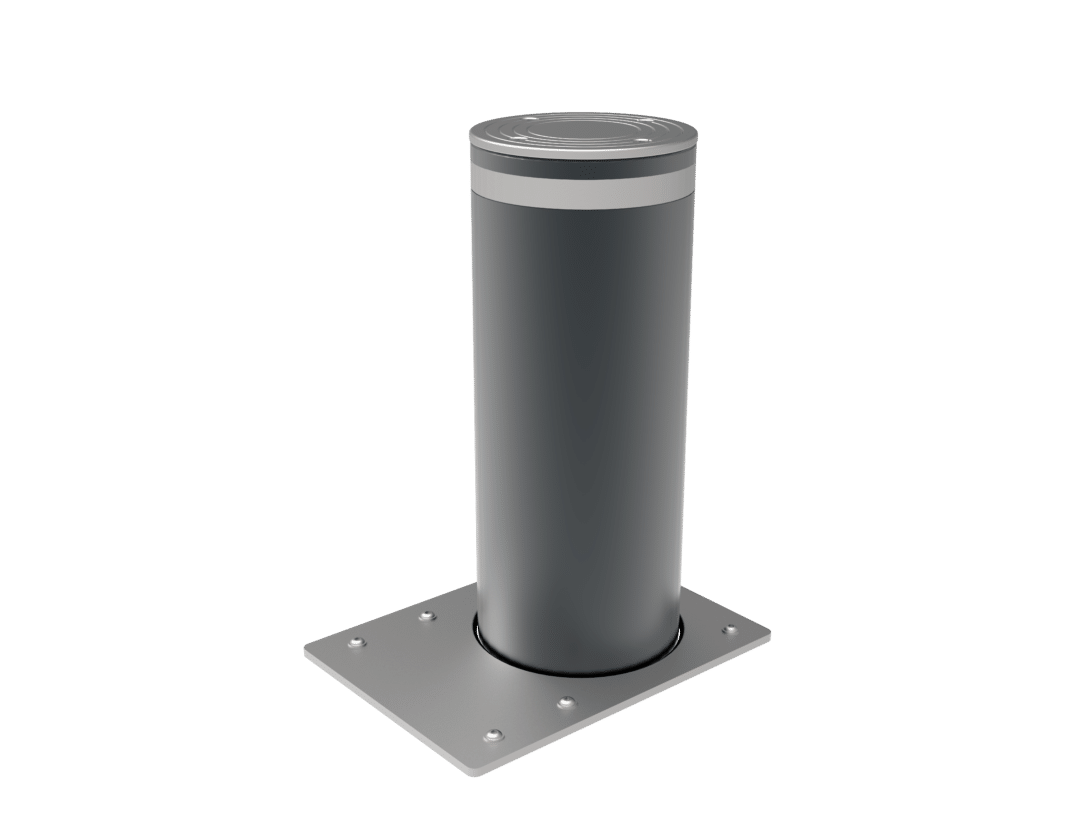

A25-60-C50
Automatic retractable bollard - Withstands the impact of a 3.5-tonne HGV at 50 km/h
The A25-60 C50 retractable security bollard is made of steel, 25 cm in diameter and 60 cm high. A wide range of versions is available (LEDs, stainless steel).
The frames and the surfaces exposed to tread are made of stainless steel, offering high tread resistance. Operational after a crash test with a 1.1-tonne car at 50 km/h, its resistance is supplemented by a digital crash test carried out by an independent Cofrac-approved body, during which the bollard stopped a 3.5-tonne HGV travelling at 48 km/h without vehicle entry. The drive system is integrated in a separate compartment, accessible without disassembling the bollard. It is also available with a remote hydraulic drive system.
A25-60-C50
Height: 60 cm
Diameter: 25 cm
MAIN CHARACTERISTICS
Standard characteristics:
• Cylinder:
• Steel treated with zinc plating Ø 25 cm - height 60 cm
• Thermo-lacquering, RAL 7016 colour
• Stainless steel bollard top, thickness 20 mm
• Brush seal to prevent scratching on housing
• Class 2 reflective tape
• Frame:
• Stainless steel frame, thickness 6 mm
• Stainless steel floor plate, thickness 20 mm
• Lateral guide with HDPE sliders
• Steel installation casing with reinforcements
• Drive system:
• 230V hydraulic drive system integrated into the bollard frame in a compartment accessible without disassembling the bollard, with push-pull quick-release coupler
• Upper and lower limit switches integrated on a removable support, accessible without disassembling the bollard
• Biodegradable hydraulic oil with low viscosity variation
• Standards:
• NFP 98-310-compliant
• Dimensions compliant with the French Decree of 18/09/2012 on the technical specifications for accessibility of roads and public spaces
Standard equipment:
Security
• Additional connection cable length
• Heating system for cold weather or exposure to snow or frost conditions
• NC solenoid valve: Bollard freezes in position in the event of power failure
Customisation
• Choice of RAL colours
• Paint with seafront treatment
- Microblasted stainless steel finish
• LED strip on the bollard head
• Customisation of the bollard head
TECHNICAL SPECIFICATIONS
- Operating time
4 to 6 seconds
- MCBF (number of cycles)
2 000 000
- MTBF (hours)
25 000
- MTTR (min)
30 min
- Finishes
RAL 7016 steel colour
- Concrete foundation dimensions (LxDxH)
450 x 330 mm
- Overall dimensions (LxDxH)
600 / 250 mm
- Operating temperature
-20°C to +50°C
- Voltage
230 V
- Power
680 W
- Drive system
Integrated hydraulics
- Impact resistance
311,000 J
- Power outage behaviour
Positive (gravity lowering system without electrical assistance in the event of power failure)
- Connection cable
10 m connection cable supplied
