AB-C65
Automatic security barrier - Withstands the impact of a 3.5-tonne HGV at 64 km/h

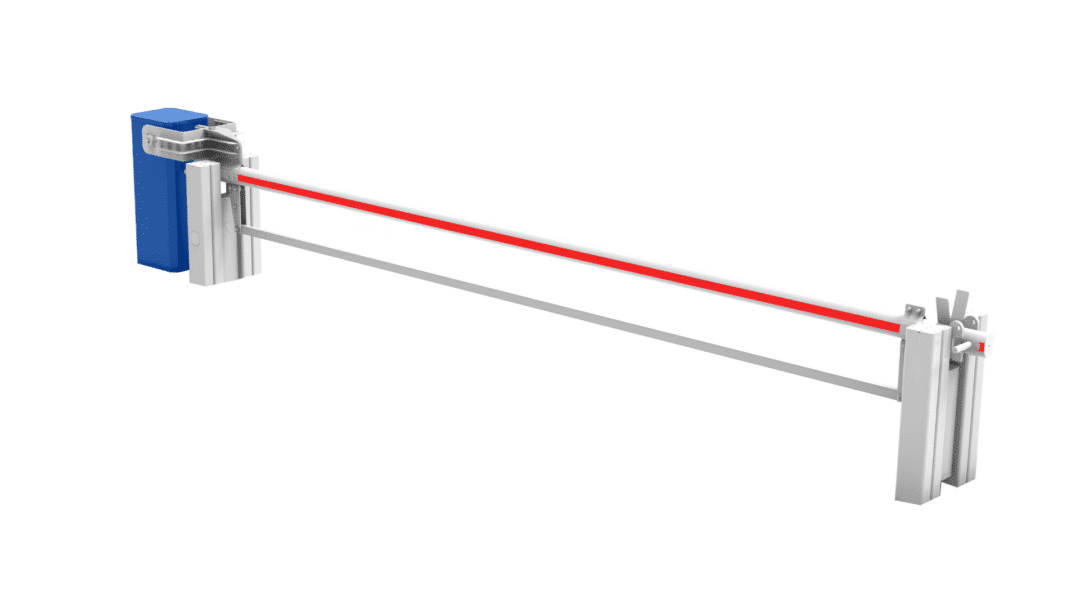

The ALE-AB-C65 security barrier, manufactured by AMCO, is an automatic boom security barrier.
Equipped with a 135 x 93 mm oval aluminium axial arm with an integrated retaining device, it is available in lengths of 2 to 6 m.
The AB-C65 barrier is reinforced with two heavy-gauge steel struts to be sealed in a 50 cm deep concrete foundation.
It is controlled by One-C logic, and smooth movements are ensured by the One-Sense angle sensor, which manages the acceleration and deceleration ranges. Its precision indicates the arm position to the nearest degree.
The housing is made of 4 mm thick steel, and the AB-C65 barrier offers all the features of the LBA12 barrier.
The main arm is coupled with a second arm below it. The hostile vehicle mitigation (HVM) locking system is automatically activated in the event of an impact, so there is no need to position a device manually for the barrier to be fully effective.
Its resistance is certified by a digital crash test carried out by an independent Cofrac-accredited body in accordance with IWA14-1, proving its ability to stop a 3.5-tonne HGV at 64 km/h.
AB-C65
Width: up to 6 m
MAIN CHARACTERISTICS
Standard characteristics:
• Arm: 135 x 93 mm aluminium oval axial
• Housing: 4 mm thick cataphoresis treated pickled sheet
• Cover: 3 mm thick steel
• Finishes: RAL 5015 housing, AVB small posts and 1/2 RAL 9010 shells
• ONE-C control board including: Power supply, PLC, frequency converter, SD card, RJ45 (Modbus) and torque limiter
• Automatic locking at the moment of impact
• Lockable by padlock
• Angle sensor
Optional features:
Security
• Internal mechanical lock
• Electromechanical arm lock
• Magnetic lock
• Housing protection kit lockable by padlock
• Small light post to be mounted on struts
• Flashing light
• Reporting to terminal block
• IR cell
• Loop detector
• Fixed + articulated low grid
Customisation
• Choice of RAL colours on housing
• RAL colour on struts
TECHNICAL SPECIFICATIONS
- Arm
135 x 93 mm
- Operating time
10 to 15 s
- MCBF (number of cycles)
≥ 3 million
- MTBF (hours)
≥ 15,000
- MTTR (min)
Less than 30 minutes
- Max. length of the arm
3 to 6 m
- Finishes
RAL 5015 barrier housing /RAL 9010 posts & arm
- Operating temperature
-20° to +50° C
- IP rating
54
- Drive system
Electric- 230V
- Impact resistance
553,000 J
- Power outage behaviour
Crank operation
