F25-60 7548
Static security bollard - Withstands the impact of a 7.2-tonne HGV at 48 km/h

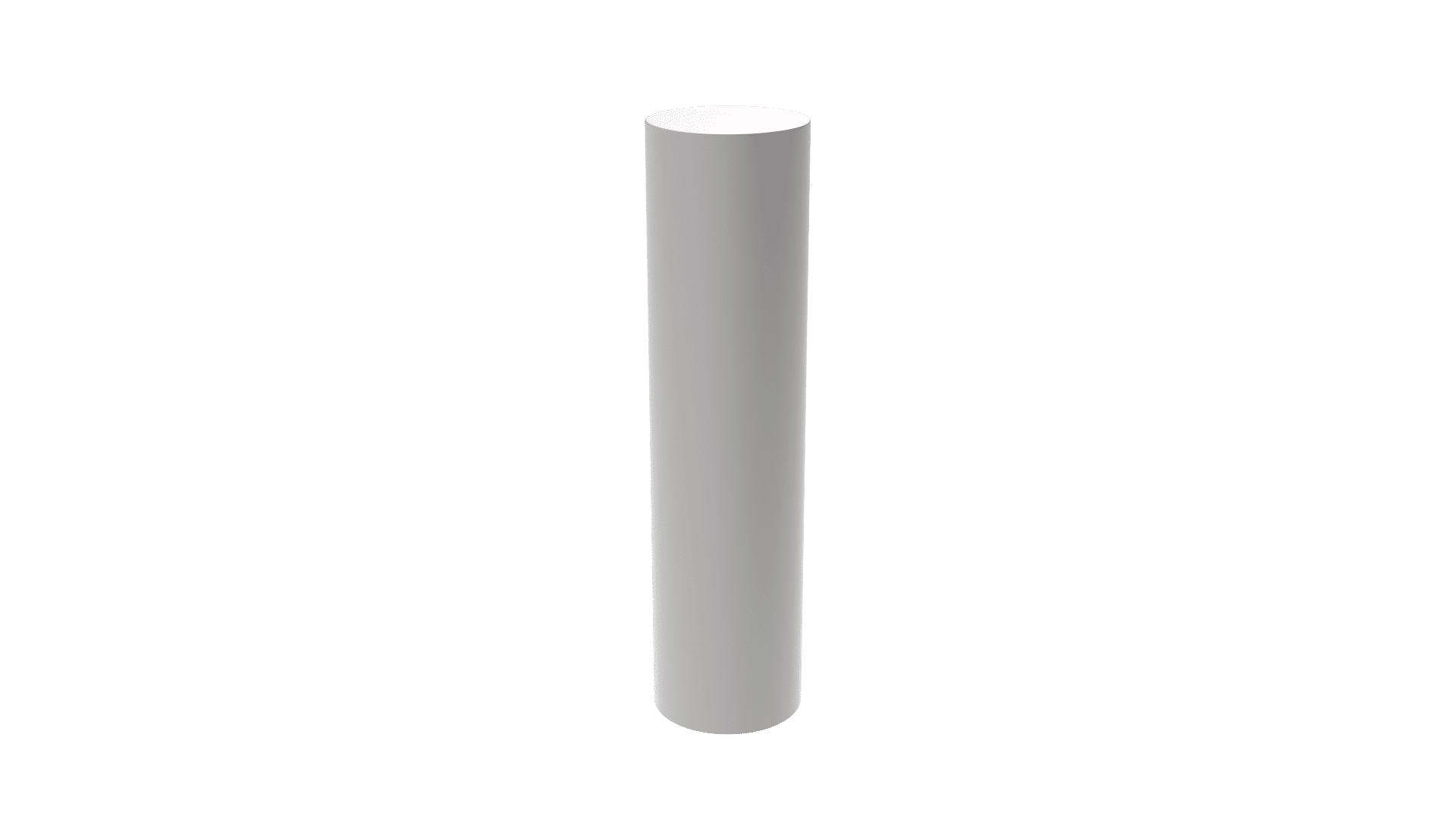

The ALE-F25-60 7548 static bollard manufactured by AMCO is made of steel, 25 cm in diameter and 60 cm high.
Resistance certified with a digital crash test carried out by an independent Cofrac-accredited body in accordance with IWA 14-1, during which the bollard stopped a 7.2-tonne HGV travelling at 48 km/h without vehicle entry.
This model is available in painted steel or stainless steel with sleeve. The very low sealing depth in the stainless steel version means it can be installed in an excavation less than 20 cm deep.
F25-60 7548
Height: 60 cm
Diameter: 25 cm
MAIN CHARACTERISTICS
Standard characteristics:
• Cylinder:
• Steel version:
Steel cylinder treated with cataphoresis and epoxy powder coating Ø 25 cm - height 60 cm RAL 7016
• Stainless steel version:
Hot-dip galvanised steel cylinder with stainless steel shell sleeve, microblasted finish Ø 25 cm - height 60 cm
Optional features:
• Microblasted stainless steel sleeve
• Adjusting feet
• Retroreflective tape
• RAL colour on stainless steel
• Brushed GR 220 stainless steel finish
• Paint with seafront treatment
• LED strip integrated in bollard
• Customised sleeve
TECHNICAL SPECIFICATIONS
- Finishes
RAL 7016 steel colour / Microblasted stainless steel
- Above-ground cylinder dimensions (H-dia.)
600 mm / 250 mm
- Impact resistance
640,000 J
