TOTEM TSC
Stylish technical totem for control logic and access control

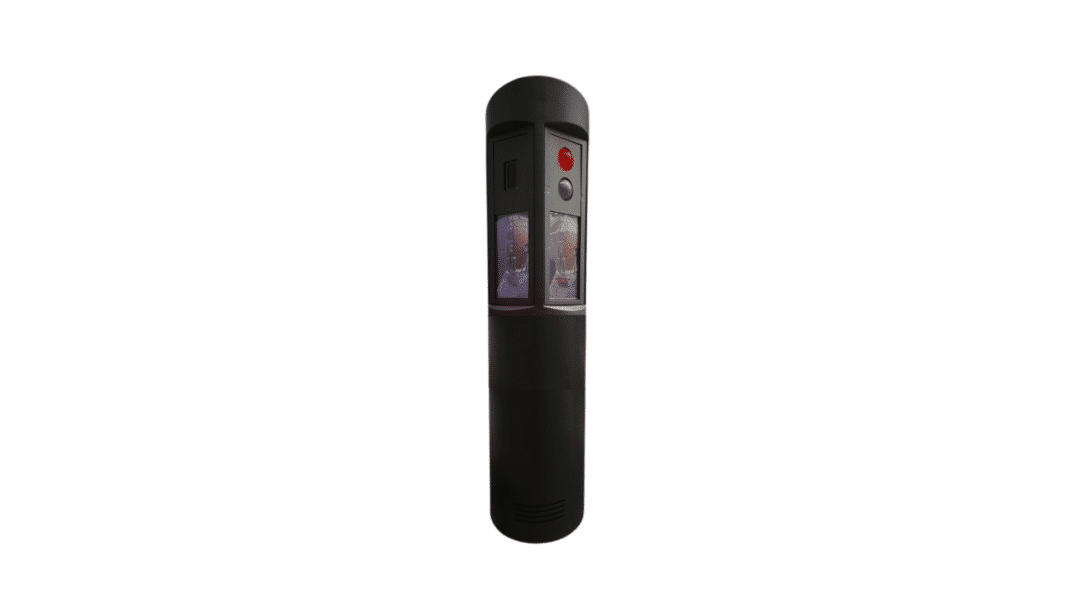

The TSC-S totem is a stylish piece with an elliptical shape, measuring 180 cm high, 448 mm long and 331 mm wide.
Made of steel, it enables the integration of a One-C module with its hydraulic pump. Equipped with two flat surfaces oriented at 45°, it allows the integration of traffic lights and the access control equipment needed for operation (LPR, intercom, badge reader, etc.).
Innovative in its design and fittings, this totem can be equipped with a screen for a live view of the bollard and the front of the vehicle.
TOTEM TSC
MAIN CHARACTERISTICS
Standard characteristics:
• Elliptical totem:
• Totem made of 2 mm thick cataphoresis treated steel with RAL 7016 epoxy powder coating
• Elliptical shape with a length of 448 mm and a width of 331 mm
• Height 1,800 mm
• Hinged door
• Watertight seal around the edge of the door
• Hinge-mounted control board
• 2 sides to be fitted with lights and access control devices with the following dimensions: height 695 mm x width 264 mm, facing both directions of traffic
• Sloping top
• Natural ventilation
• Locking:
• Locking with 2 compression locks
Optional features:
• Plate fitted with a pair of Ø 100 LED lights
• Machining for access control integration
• Integrated triangle emergency services release system
• Preconfigured for the integration of access controls
• Preconfigured for LPR integration
• Thermostatically controlled heater + hygrostat
• Seafront paint treatment
• PVC sealing template + anchor brackets
• Screen and camera unit for a view of the bollard
TECHNICAL SPECIFICATIONS
- Finishes
RAL 7016 steel colour
- Clearance height
1,800 mm
- Above-ground cylinder dimensions (H-dia.)
Elliptical 448 x 331 mm
- IP rating
54
