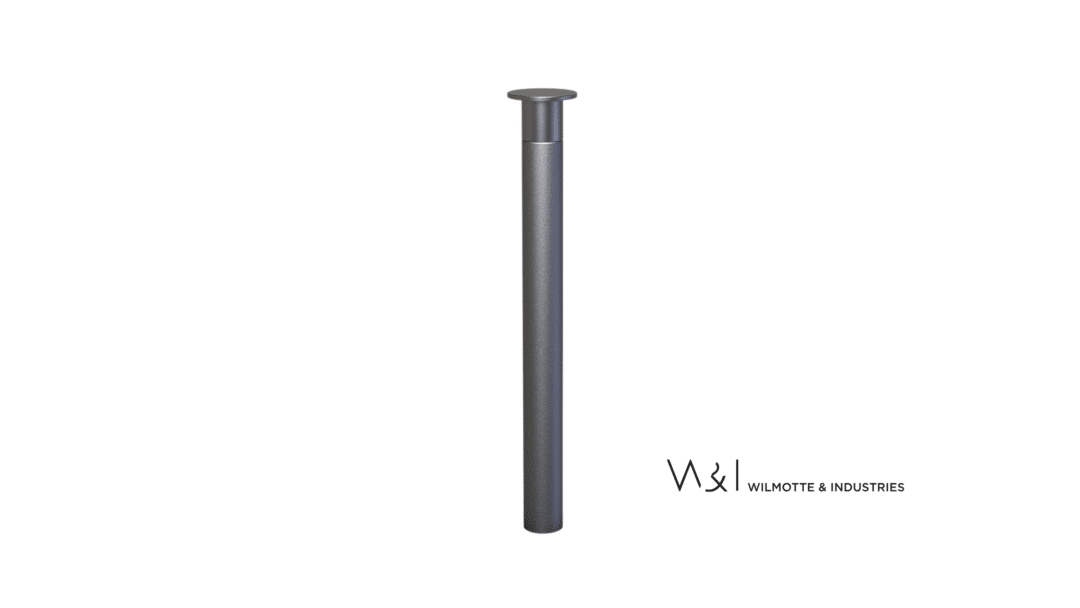

URBICANDE slim post
URBICANDE range – Street furniture designed in collaboration with Jean-Michel Wilmotte.
Crash-tested slim post designed to protect pedestrian walkways, building facades and sensitive areas. Withstands the impact of a 3.5-tonne vehicle travelling at 40 km/h, ensuring real and lasting safety. Its robustness limits the damage commonly suffered by traditional posts and reduces the need for replacement.
URBICANDE slim post
Height : 1 m / 1.2 m
Diameter : 9 cm
MAIN CHARACTERISTICS
Standard characteristics :
• Cylinder :
• Steel cylinder treated by zinc plating and epoxy
powder Ø 9 cm - height 100/120 cm
• Adjustment pads integrated into the base for levelling
• Installation :
• Small post axis 20 cm from the edge of the concrete
foundation or from the back of the curb
• Barrier: articulated guard rails to follow the road
Optional features :
Customisation
• Choice of RAL colours
• Height variant 1.20 m with contrasting head
Certification :
Impact resistance certified by digital crash test :
Frontal impact :
• 1.5 tonnes at 48 km/h
• 3.5 tonnes at 32 km/h
Impact at 45° :
• 3.5 tonnes at 40 km/h
Versions :
• Barrier
• Barrier guard rail ( custom fill)
• Barrier combinations
• Barrier and planter combinations
TECHNICAL SPECIFICATIONS
- Finishes
RAL steel colour
- Above-ground cylinder dimensions (H-dia.)
Ø 9 - H 100 or 120 cm steel
- Impact resistance
216 000 J
